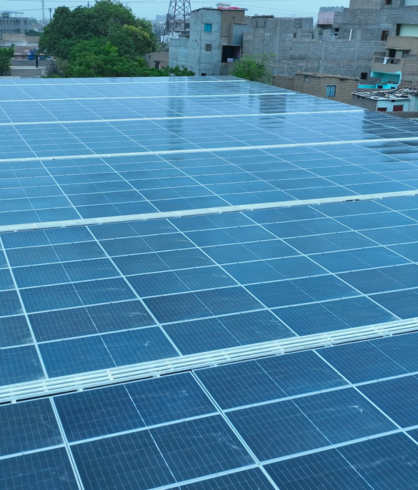

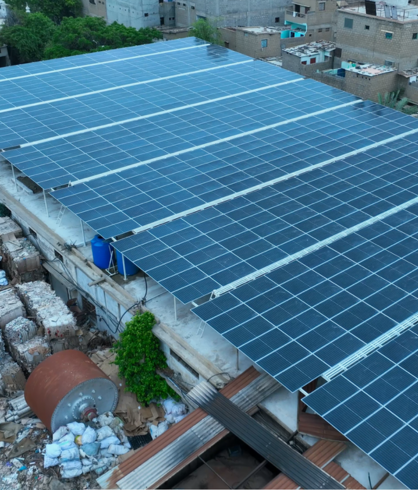

A 709 kW on‑grid rooftop photovoltaic system was designed and installed to meet the facility’s energy requirements, minimize grid consumption and achieve substantial long‑term cost savings.
Location
SITE, Karachi, Pakistan
Power (KWp)
709 KWp
Project Summary

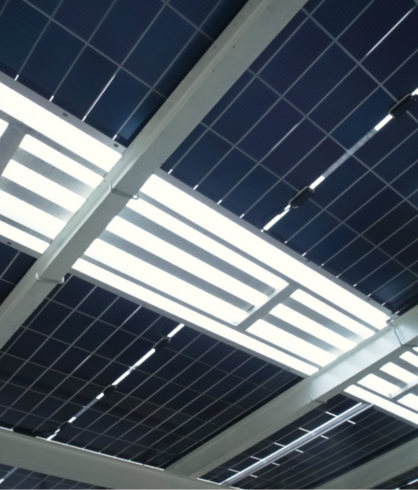

A grid‑connected solar PV installation was designed and installed, featuring premium PV modules with a total capacity of 709 kW. The layout was optimized through 3D modeling to avoid shading and ensure uniform irradiance across the roof plane. Three‑phase inverter with built‑in monitoring and all system components were selected to comply with local electrical codes incorporating for a seamless utility integration. Performance warranties and preventive‑maintenance options were secured to guarantee uptime and yield.
Overview & Challenge
Roof geometry, structural load capacity and shading studies were performed during the site survey phase. Module tilt angles, inter‑row spacing and conduit routing were then coordinated to optimize generation and simplify maintenance access. The primary challenge involved integrating the PV string design with existing rooftop obstructions while adhering to safety clearances and wind‑load regulations.
